Product Spec

Pliers Length (mm)                                         170 mm
Pliers Length (Inch)                                         7 ''
Soft Wire                                                         4.0
Medium Hard Wire                                          2.5
Hard Wire                                                        1.6
Weight                                                             200 gram
Series                                                              Z 14 1 06
Packing (box)                                                5

Features & Benefits

• Standards: Manufactured acc. to IEC 60900:2012.

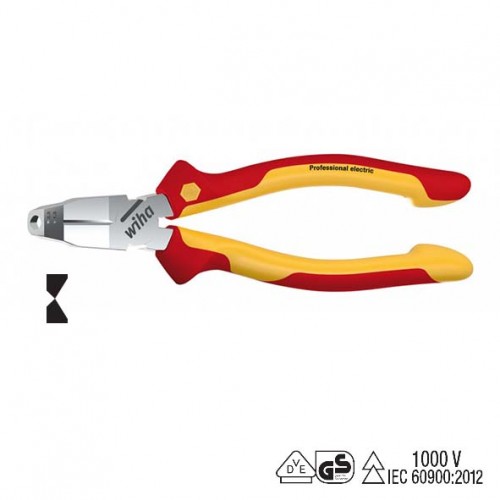

• Head shape: With three processing stations: For cutting and stripping.
• Design: Low wear lap joint, riveted and able to withstand high loads. Diagonal cutters with durable cutting edges due to additional induction hardening to approx. 64 HRC. Ergonomic and energy-saving stripping lengthwise on the cable and the pliers, thanks to the specially cranked head.
• Material: High quality C 70 tool steel, tempered.
• Application: Diagonal cutters for cutting soft and hard wires, as well as cables such as NYM lines 3x1.52 - 5x2.52 . Flush stripping of round and damp-proof cable and stripping of conductors, even in hard-to-reach areas, e.g. in junction boxes. For all work on or around electrical components up to 1,000 V AC.
